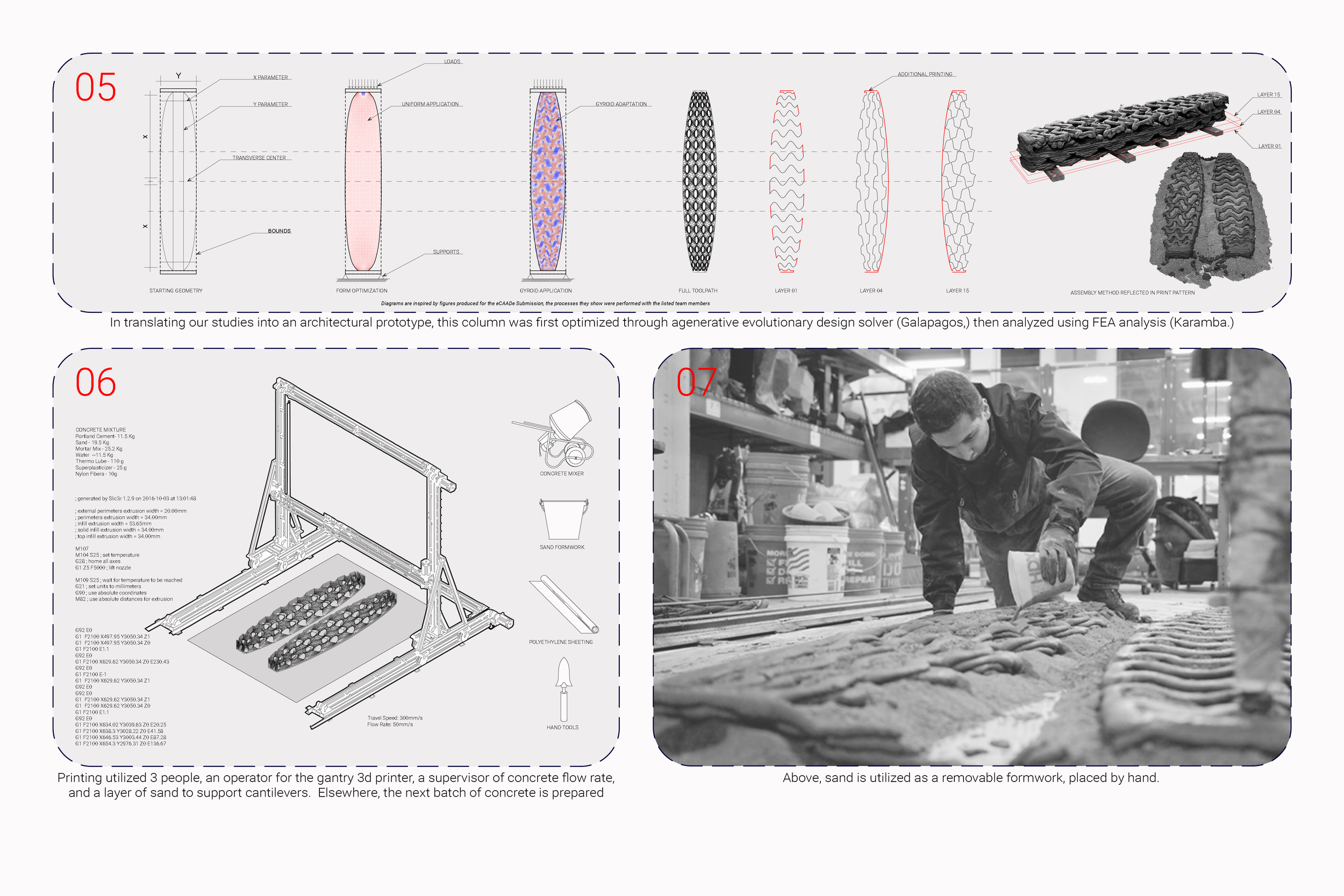

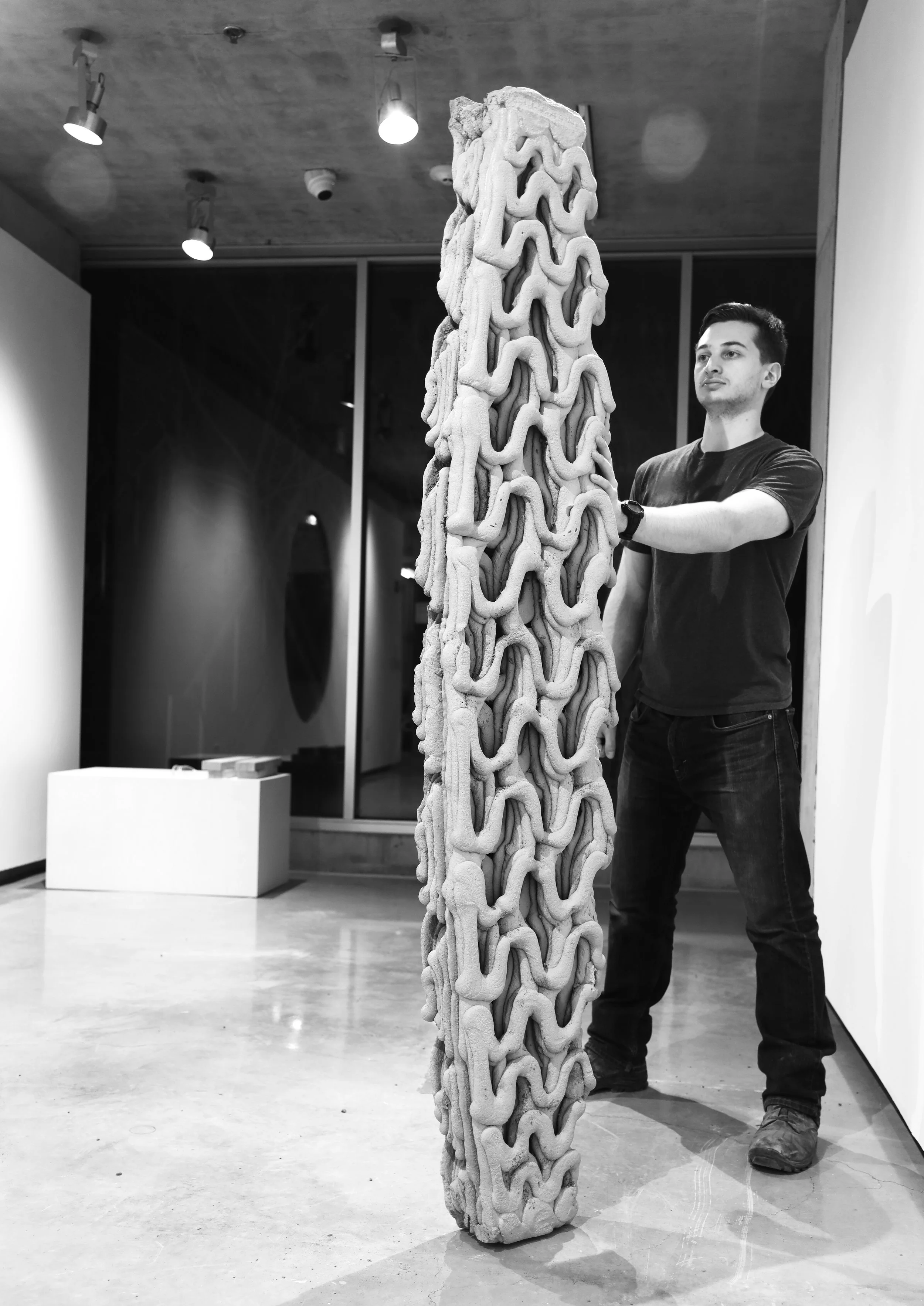

Designed at Cornell University, the 3d printed gyroid structure was constructed with the Daedalus 3d printer, from HANNA studio.

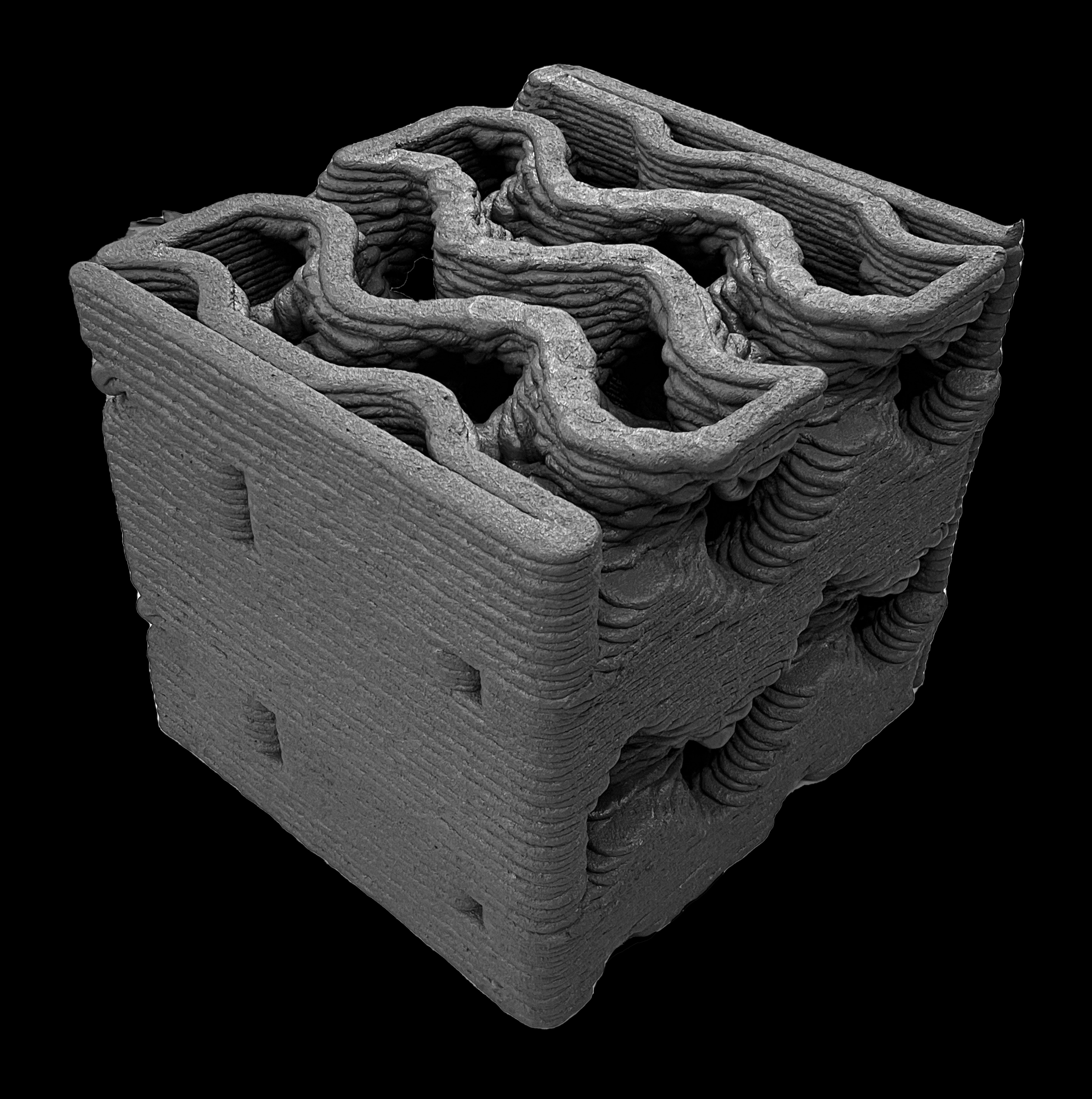

The gyroid is a triply periodic minimal surface (TPMS) that efficiently distributes high stress under compression loading.
Constructed of Concrete, the form utilizes around 50% as much concrete with the same compressive strength as a solid object of the same size.
The gyroid provides a series of holes, created by the meeting of two "S-curves" between each layer.

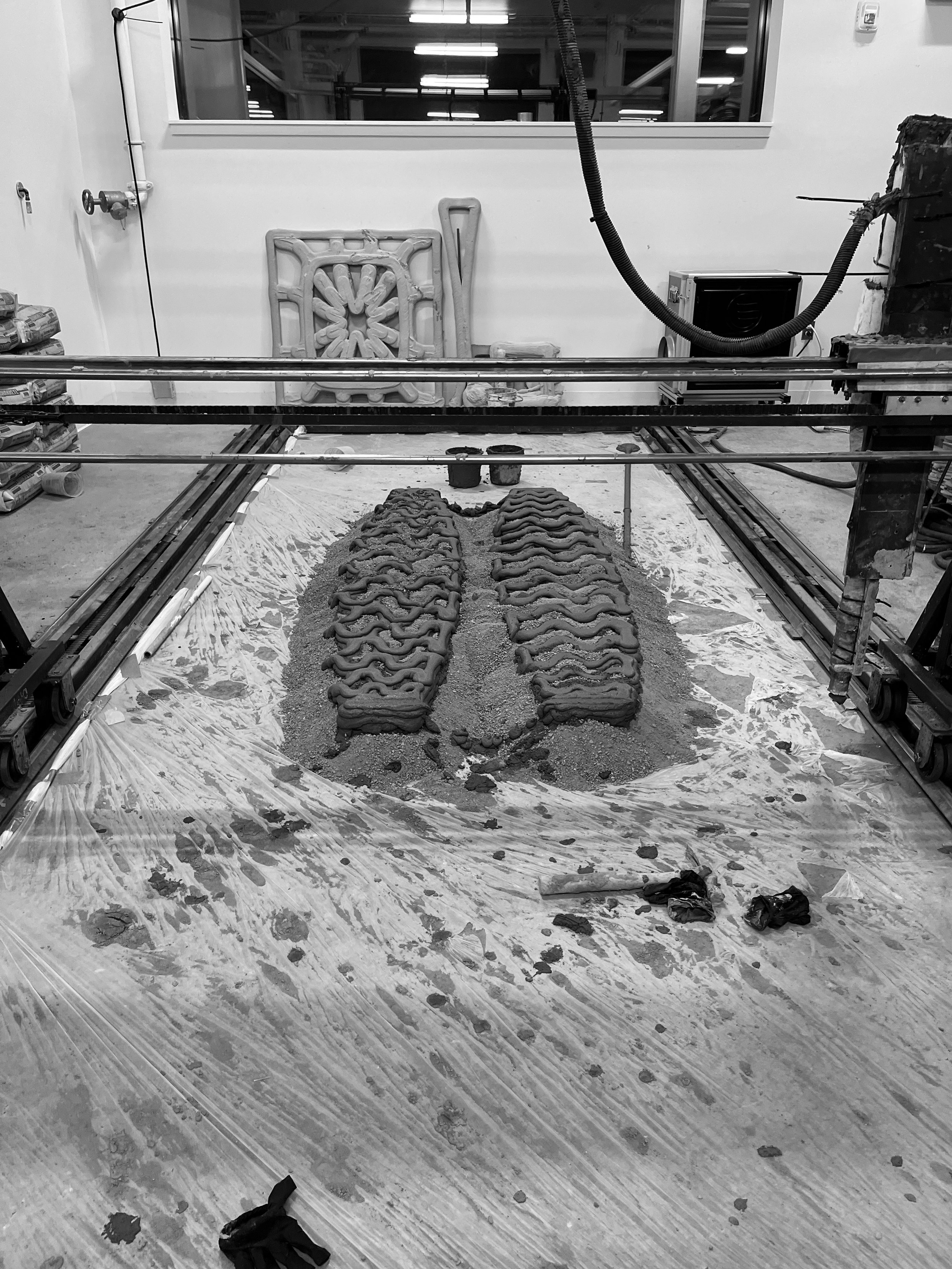

The use of sand as a support material creates a rough and smooth side between layers.
YEAR Fall - Spring, 2023
PHASE eCAADe 2023 Research Paper
TEAM John Conrad, Lawson Spencer, Roberto Amador, Tyler Linnehan, Moneeb Genedy, sriramya Nair, Sasa Zivkovic
EXHIBITION 2023 eCAADe Conference, Graz University, Austria
